Confirmado
- Material
- Stainless Steel
- EN 1.4301 Equiv.
- Hardness
- Surface Treatment
- NA
- D Tolerance
- Shaft Dia. D(mm)
- 10
- Length L(mm)[40-598/0.1mm unidades]
- F(mm)[2-45/0.1mm unidades]
- P(mm)[3-9/1mm unidades]
- Type
- CAD
- 2D
- 3D
- Días estimados de envío
- Todo
- En el plazo de 4 días laborables
Opciones adicionales
- Keyway Machining (One Location) [KC](mm)[0-4/0.1mm unidades]
- A(mm)[3-36/0.1mm unidades]
- Keyway Machining (Two Locations) [WKC](mm)[42-598/0.1mm unidades]
- C(mm)[3-150/0.1mm unidades]
- K(mm)[0-598/0.1mm unidades]
- E(mm)[3-150/0.1mm unidades]
- Keyway Machining on Shaft End [PKC](Shaft End P Part)(mm)[0-25/0.1mm unidades]
- Set Screw Flat (One Location) [FC](mm)[42-598/1mm unidades]
- G(mm)[1-70/1mm unidades]
- Set Screw Flats (Two Locations) [WFC](mm)[42-598/1mm unidades]
- J(mm)[0-70/1mm unidades]
- V(mm)[0-70/1mm unidades]
- Slit Cam Groove Machining [UC](mm)[1-35/1mm unidades]
- L Dimension Tolerance
- Concentricity
- KZ[0-598/0.1]
- SG(mm)[1-70/1mm unidades]
- 2 Chamfering (Angle Configurable) [SFC](mm)[42-598/1mm unidades]
- PFC[0-245/1]
- LC(mm)[2-70/1mm unidades]
- AG(°)[15-345/15° unidades]
- TR[2-150/0.1]
- TL[2-125/0.1]
- TF[2-150/0.1]
- PP[0-245/0.1]
- PK(mm)[2-70/0.1mm unidades]
- Z(mm)[3-150/0.1mm unidades]
- CP
- 2
- 3
- CD
- 2
- 3
- 4
- PW(mm)[2-70/0.1mm unidades]
- PV[0-245/0.1]
Rotary axes / offset on one side / machining selectable (SSFRHP10-40-F25-P8-KC4-A36)

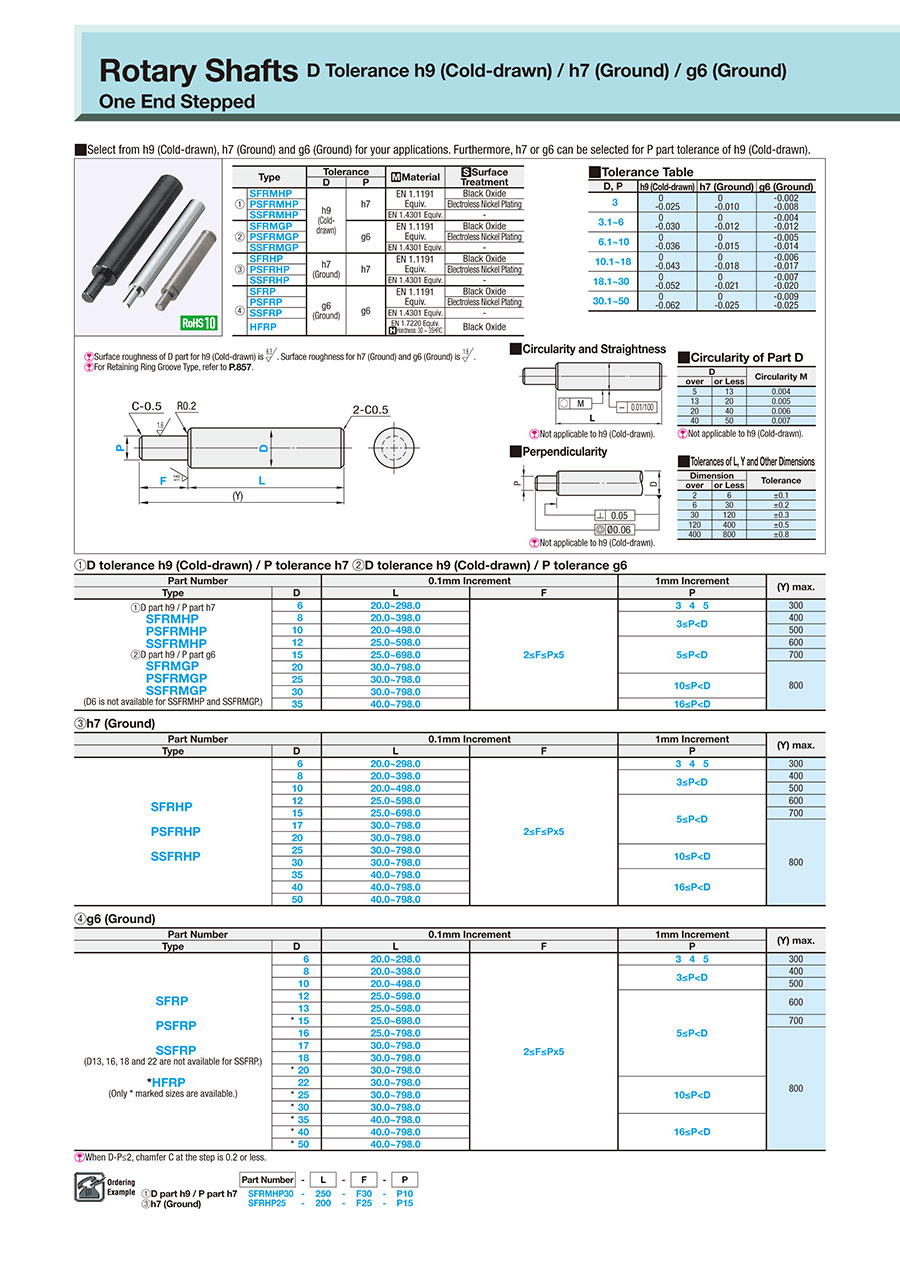

Plano de contorno y tabla de especificaciones
| Type | Tolerance | Material | Surface Treatment | ||
| D | P | ||||
| SFRMHP | h9 (Cold-drawn) | h7 | EN 1.1191 Equiv. | Black Oxide | |
| PSFRMHP | Electroless Nickel Plating | ||||
| SSFRMHP | EN 1.4301 Equiv. | - | |||
| SFRMGP | g6 | EN 1.1191 Equiv. | Black Oxide | ||
| PSFRMGP | Electroless Nickel Plating | ||||
| SSFRMGP | EN 1.4301 Equiv. | - | |||
| SFRHP | h7 (Ground) | h7 | EN 1.1191 Equiv. | Black Oxide | |
| PSFRHP | Electroless Nickel Plating | ||||
| SSFRHP | EN 1.4301 Equiv. | - | |||
| SFRP | g6 (Ground) | g6 | EN 1.1191 Equiv. | Black Oxide | |
| PSFRP | Electroless Nickel Plating | ||||
| SSFRP | EN 1.4301 Equiv. | - | |||
| HFRP | EN 1.7220 Equiv. Hardness: 30 ~ 35HRC | Black Oxide | |||
Specifications
| Part Number | - | L | - | F | - | P | |
| D part h9 / P part h7 h7 (Ground) | SFRMHP30 SFRHP25 | - - | 250 200 | - - | F30 F25 | - - | P10 P15 |
D tolerance h9 (Cold-drawn) / P tolerance h7 D tolerance h9 (Cold-drawn) / P tolerance g6
h7 (Ground)
g6 (Ground)
When D-P≤2, chamfer C at the step is 0.2 or less.
| Part Number | 0.1mm Increment | 1mm Increment | (Y) max. | ||
| Type | D | L | F | P | |
| D part h9 / P part h7 SFRMHP PSFRMHP SSFRMHP D part h9 / P part g6 SFRMGP PSFRMGP SSFRMGP (D6 is not available for SSFRMHP and SSFRMGP.) | 6 | 20.0~298.0 | 2≤F≤Px5 | 3 4 5 | 300 |
| 8 | 20.0~398.0 | 3≤P<D | 400 | ||
| 10 | 20.0~498.0 | 500 | |||
| 12 | 25.0~598.0 | 5≤P<D | 600 | ||
| 15 | 25.0~698.0 | 700 | |||
| 20 | 30.0~798.0 | 800 | |||
| 25 | 30.0~798.0 | 10≤P<D | |||
| 30 | 30.0~798.0 | ||||
| 35 | 40.0~798.0 | 16≤P<D | |||
| Part Number | 0.1mm Increment | 1mm Increment | (Y) max. | ||
| Type | D | L | F | P | |
| SFRHP PSFRHP SSFRHP | 6 | 20.0~298.0 | 2≤F≤Px5 | 3 4 5 | 300 |
| 8 | 20.0~398.0 | 3≤P<D | 400 | ||
| 10 | 20.0~498.0 | 500 | |||
| 12 | 25.0~598.0 | 5≤P<D | 600 | ||
| 15 | 25.0~698.0 | 700 | |||
| 17 | 30.0~798.0 | 800 | |||
| 20 | 30.0~798.0 | ||||
| 25 | 30.0~798.0 | 10≤P<D | |||
| 30 | 30.0~798.0 | ||||
| 35 | 40.0~798.0 | 16≤P<D | |||
| 40 | 40.0~798.0 | ||||
| 50 | 40.0~798.0 | ||||
| Part Number | 0.1mm Increment | 1mm Increment | (Y) max. | |||
| Type | D | L | F | P | ||
| SFRP PSFRP SSFRP (D13, 16, 18 and 22 are not available for SSFRP.) *HFRP (Only * marked sizes are available.) | 6 | 20.0~298.0 | 2≤F≤Px5 | 3 4 5 | 300 | |
| 8 | 20.0~398.0 | 3≤P<D | 400 | |||
| 10 | 20.0~498.0 | 500 | ||||
| 12 | 25.0~598.0 | 5≤P<D | 600 | |||
| 13 | 25.0~598.0 | |||||
| * | 15 | 25.0~698.0 | 700 | |||
| 16 | 25.0~798.0 | 800 | ||||
| 17 | 30.0~798.0 | |||||
| 18 | 30.0~798.0 | |||||
| * | 20 | 30.0~798.0 | ||||
| 22 | 30.0~798.0 | 10≤P<D | ||||
| * | 25 | 30.0~798.0 | ||||
| * | 30 | 30.0~798.0 | ||||
| * | 35 | 40.0~798.0 | 16≤P<D | |||
| * | 40 | 40.0~798.0 | ||||
| * | 50 | 40.0~798.0 | ||||
