Screws with shoulder / drive selectable / stainless steel, steel / precision class(Lista de números de pieza: 8 página)

Back to the Category Fulcrum Pins

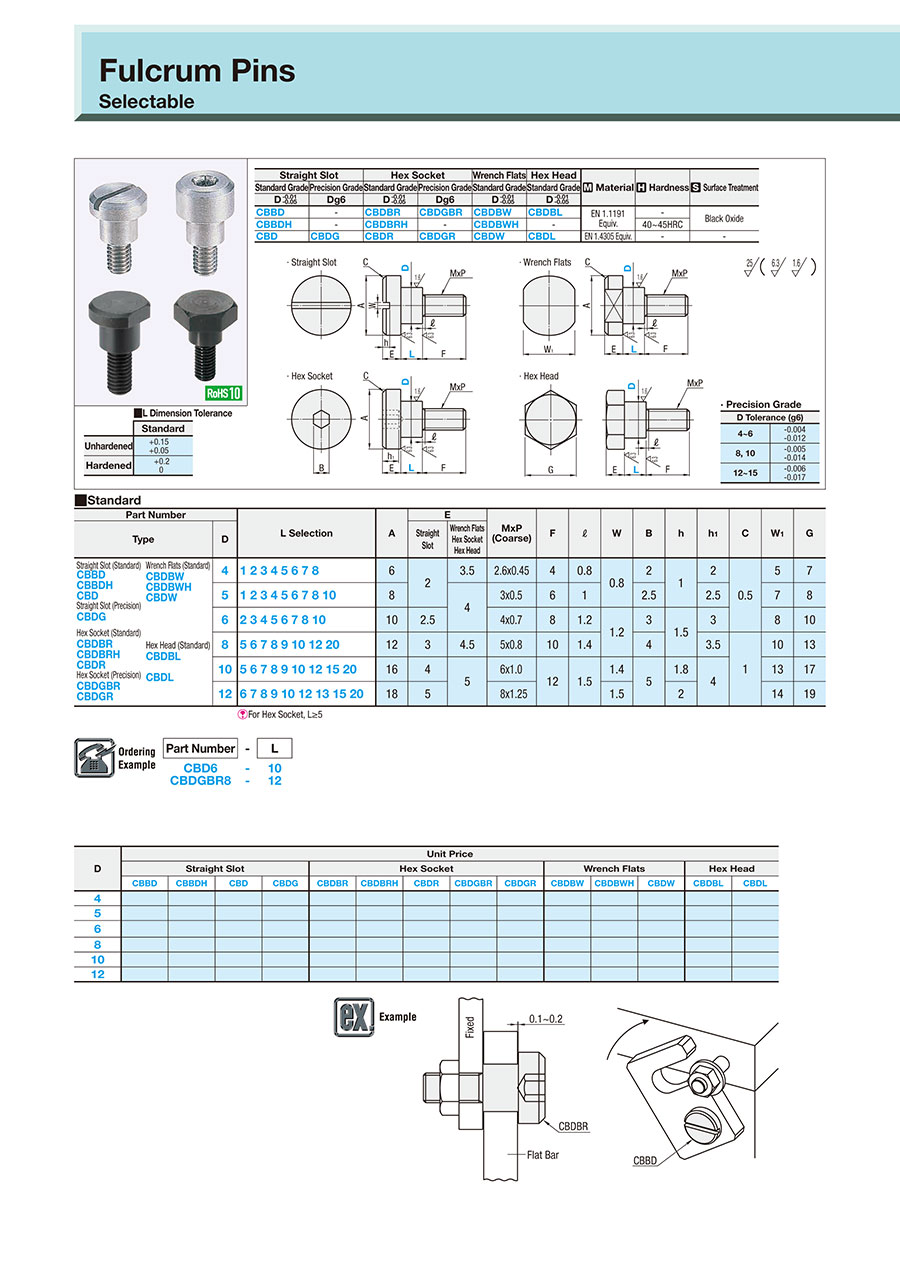

Technical Drawing - Fulcrum Pins

Open the technical drawing in the new window

Available dimensions and tolerances can be found under the tab More information.


Basic Properties (e.g., material, hardness, coating, tolerance) - Fulcrum Pins

 This type may have centering holes depending on dimensions.
 HRC hardened products may be discolored by hardening.
Further specifications can be found under the tab More information.

Composition of a Product Code - Fulcrum Pins

General Information - Fulcrum Pins

Fulcrum Pins Selection Details

- Material: steel, stainless steel

- Coatings: untreated, burnished

- Heat treatment: induction hardened

- Shaft diameter: 4 mm to 20 mm

- Tolerance class of shaft: -0.01mm/+0.05mm, g6

- Thread diameter: M2.6 to M16

- Drive type: hexagon socket, slot, hexagon, key surfaces


Description/Basics

The screwed connection is one of the method most commonly used for detachable connections. Fulcrum pins, also called rotating bolts, have various advantages over conventional screws due to their hardened shaft.


The head of our rotating bolts is in part flatter than that of a stripper bolt, which, in combination with the various drive forms, simplifies the assembly in tight installation spaces. Similar to stripper bolts, Fulcrum pins have a tight-tolerance shaft that can be additionally hardened. This allows designing a simple bearing or guide.


When designing a swivel lock, a combination of Fulcrum pins and links are recommended. This allows, for example, to lock a solid closure. In this case, the rotary bolt can serve both as a bearing point and as an end stop. Its hardened approach offers suitable protection against premature wear in both functions.


Due to the ability to absorb transverse forces and shear forces, bearing bolts with hardened shoulders are suitable for creating a hinge assembly.
Combined with rod end bearings, there is also the option of balancing an offset.



Application Examples - Fulcrum Pins



Industrial Applications
