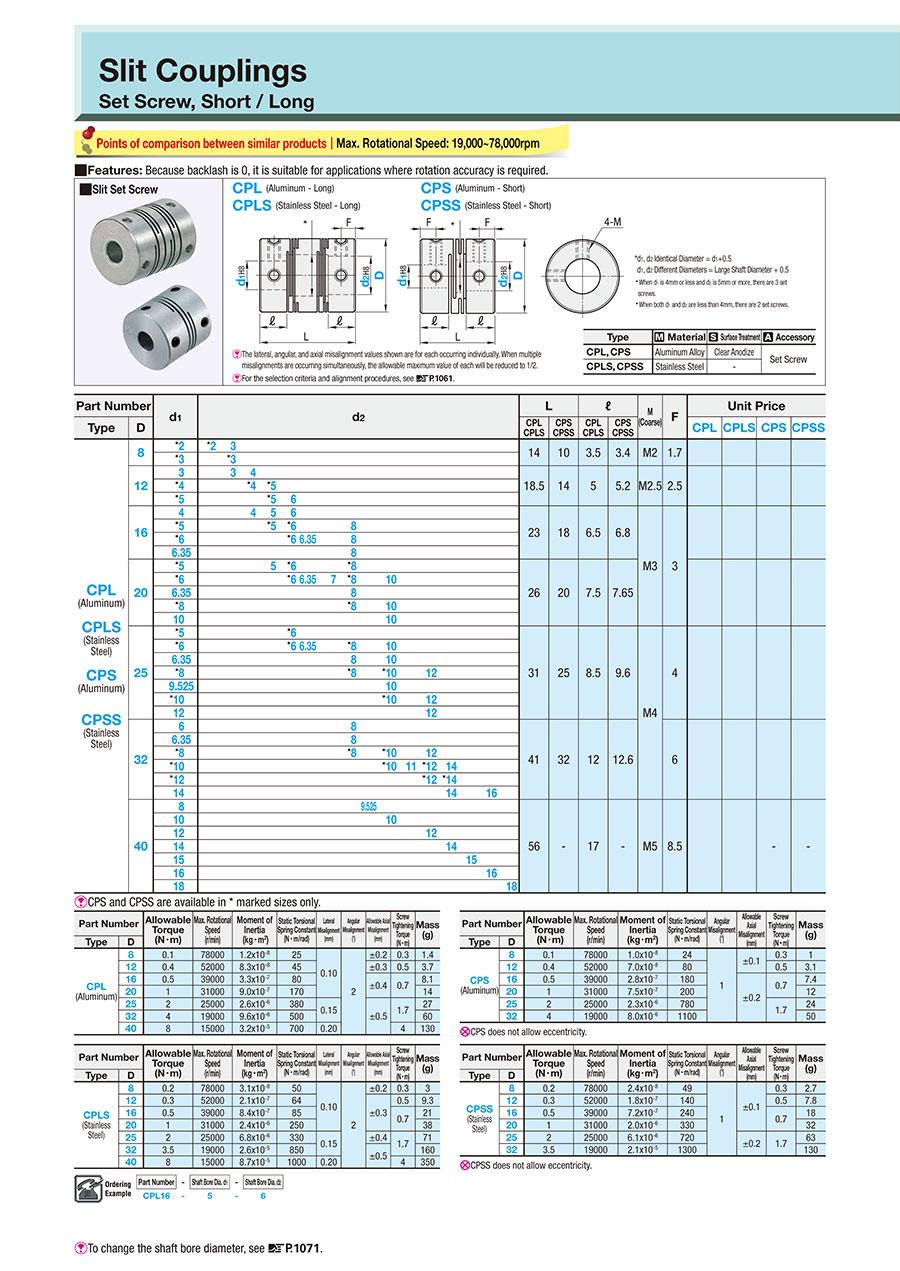

Slit couplings / grub screw clamping / cross slot / body: aluminium, stainless steel(Lista de números de pieza: 3 página)

Back to the Category Shaft Couplings

Technical Drawing - Claw Couplings

Open the technical drawing in the new window



Available dimensions and tolerances can be found under the tab More information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Claw Couplings

The lateral, angular, and axial misalignment values shown are for each occurring individually. When multiple misalignments are occurring simultaneously, the allowable maximum value of each will be reduced to 1/2.
For the selection criteria and alignment procedures, see >>P.1061.

^*d₁, d₂ Identical Diameter = d₁+0.5
d₁, d₂ Different Diameters = Large Shaft Diameter + 0.5
• When d₁ is 4mm or less and d₂ is 5mm or more, there are 3 set
screws.
• When both d₁ and d₂ are less than 4mm, there are 2 set screws.

Type	Material	Surface Treatment	Accessory
CPL, CPS	Aluminum Alloy	Clear Anodize	Set Screw
CPLS, CPSS	Stainless Steel	-



Further specifications can be found under the tab More information.

Composition of a Product Code - Claw Couplings

Part Number	-	Shaft Bore Dia. d1	-	Shaft Bore Dia. d2
CPL16	-	5	-	6



General Information - Claw Couplings



Shaft Coupling Selection Details

- Material: aluminum, aluminum alloy, steel, stainless steel, plastic

- Coupling buffer material: polyacetal, polyurethane, nylon, aluminum bronze, carbon fibre reinforced polymer (CFRP)

- Disc material: stainless steel, polyimide, carbon fibre (carbon)

- Fastening: hub clamping, half shell clamping, threaded pin clamping, clamping sleeve, keyway

- Design: slit coupling, disc coupling (servo coupling), Oldham coupling, dog coupling, jaw coupling, bellow coupling, metal bellow coupling, elastomer coupling

- ISO tolerances: H8

- Shaft diameter: 1 to 45 mm

- Outer diameter: 6 to 95 mm

- Length: 8.4 to 100 mm

- Offset: angle offset, radial offset, axial offset

Design Overview



Description/Basics

A shaft coupling, also called a compensating coupling, is generally used for the transmission of torque for mechanical engineering. Flexible shaft couplings (non-rigid) can compensate for lateral, axial and angular offsets (misalignment). Therefore, these are common connecting elements between motors and axles/shafts or even ball screws.

There are various types of designs, such as the jaw couplings, disc couplings (servo couplings), slit couplings, bellow couplings, Oldham couplings and many others, which are selected depending on the type of misalignment. You can determine which design is the right one for transmission in your application with the Coupling Selection Method available as a PDF.

When the shaft coupling is professionally installed, the transmission of rotational forces should be slip-free. To do this, the appropriate shaft coupling must be selected depending on the application. Here, it is important to observe the degree of misalignment, the maximum speed of rotation and the permissible torque of the compensation coupling and not to exceed these values during operation. If several misalignments occur at the same time, it is recommended to reduce the maximum value of the specified misalignment by approximately half.

The most commonly used elastomer coupling is the jaw coupling, which consists of a plastic buffer with damping properties. As a result, shocks and vibrations in a drive system can be damped, which protects adjacent components in the transmission of force. Our product range offers you alternative materials for the elastomers. These include among others aluminum bronze and carbon fibre-reinforced plastic.

The different shaft connections on the compensation couplings allow various connection variants for assembly. For this purpose, hub clamping, half shell clamping, slot clamping, threaded pin clamping, chip sleeve and keyways are available.
If a keyway is selected for a MISUMI shaft coupling, it is recommended obtaining the MISUMI machine key, as it is best to combine these.

A shaft coupling can be used for precise positioning. These are often combined together with slide screws or ball screws. A disc clutch (servo coupling) is suitable for this application, since it has a high torsional rigidity.

In addition to the standardized diameter of the shaft bore, MISUMI offers the option LDC and RDC, which allows the drill diameter to be adjusted to the shaft end in 0.1 mm increments.



Application Examples - Claw Couplings



Industrial Applications
