Round rod spacers / stainless steel, steel / black oxided, nickel-plated / end forms selectable / flat key (SETK10-26-M5-N4)

View the FAQ (3)

MISUMI

Product Details:

Manufacturer part number: SETK10-26-M5-N4

Brand: MISUMI

Price: Please contact the support for quotation

Delivery time: 6 Days

Technical Data:

O.D. D: 10 φ

Length L: 26 mm

Material: [Stainless Steel] EN 1.4301 Equiv.

Surface Treatment: Not Provided

Thread Dia. M: 5 mm

Order quantities extended (D-JIT)

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

SETK10-26-M5-N4

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog

Back to the Category Distance elements (hexagonal, square, cylindrical)

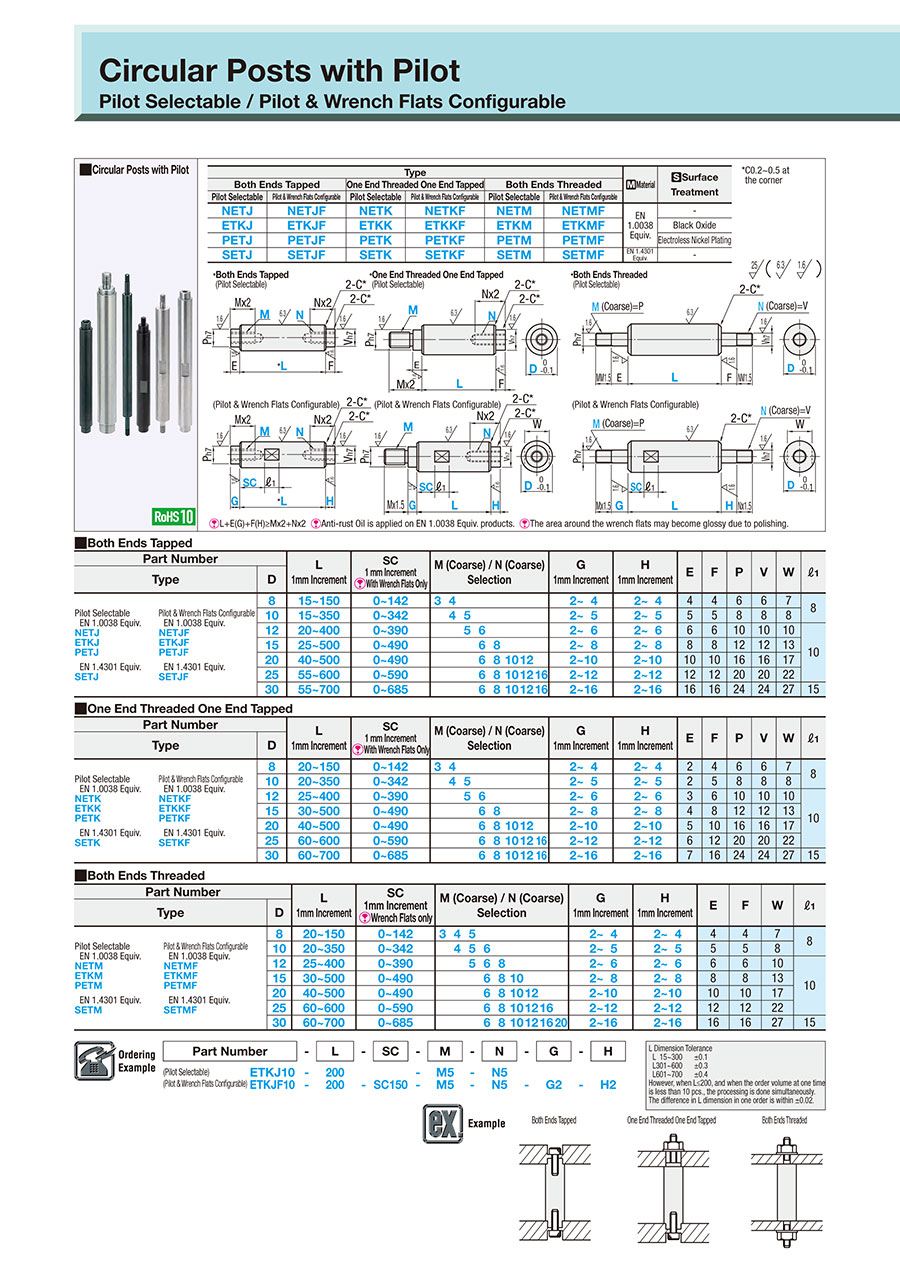

Technical Drawing - Hexagonal Rods

Circular Posts - Inlay Type:Related Image

Open the technical drawing in the new window

Available dimensions and tolerances can be found under the tab More information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Hexagonal Rods

Type						Material	Surface Treatment
Both Ends Tapped		One End Threaded One End Tapped		Both Ends Threaded
Pilot Selectable	Pilot & Wrench Flats Configurable	Pilot Selectable	Pilot & Wrench Flats Configurable	Pilot Selectable	Pilot & Wrench Flats Configurable
NETJ	NETJF	NETK	NETKF	NETM	NETMF	EN 1.0038 Equiv.	-
ETKJ	ETKJF	ETKK	ETKKF	ETKM	ETKMF		Black Oxide
PETJ	PETJF	PETK	PETKF	PETM	PETMF		Electroless Nickel Plating
SETJ	SETJF	SETK	SETKF	SETM	SETMF	EN 1.4301 Equiv.	-

*C0.2~0.5 at the corner

Further specifications can be found under the tab More information.

Composition of a Product Code - Hexagonal Rods

Part Number		-	L	-	SC	-	M	-	N	-	G	-	H
(Pilot Selectable) (Pilot & Wrench Flats Configurable)	ETKJ10 ETKJF10	- -	200 200	-	SC150	- -	M5 M5	- -	N5 N5	-	G2	-	H2

Alterations - Hexagonal Rods

General Information - Hexagonal Rods

Spacer product assortment - square spacer - round spacer bolt - plastic spacer - hexagonal spacer - hexagonal spacer with centering pin

Selection details of spacers/spacers (hexagonal, square, cylindrical)

- Material: aluminum, steel, stainless steel, PMMA, PEEK

- Coatings: uncoated, burnished, chemically nickel-plated, anodized, chromated

- Basic shapes: hexagon, square, round

- End forms: straight, female thread, male thread, female thread with centering pin

- Outer diameter (round): 4 to 50 mm

- Spanner flat (hexagon, square): 4 to 32 mm

- Length: 5 to 800 mm

- Threads: M2 to M24

Description/Basics

Spacers are generally used as spacing connections. Due to their diversity, the wide range of design concepts can be realized with spacer bolts and practically every application can be realized using the appropriate spacer bolt.
The design and assembly of thin plates makes it extremely difficult to work with counterbores or internal threads. Therefore, spacer bolts are often used on plates, sheet metal or printed circuit boards (PCB).

The selectable assembly threads, the individually configurable length of the spacers, and the selectable length tolerance via the [LKC] option offer great design freedom compared to conventional mass-produced products. This advantage is particularly important if, for example, plates of different thicknesses or particularly thin plates are utilized.
For applications with particularly high positioning requirements, it is recommended to combine shim rings with a spacer. These can be configured in thicknesses from 0.01 to 1 mm and integrated as an additional compensating element.

The assembly of hexagonal spacers is particularly easy with the hex, since they can be held against one another with an open-ended spanner. With round spacer bolts, this can be realized with a spanner flat. The spacer bolts are also available with one-sided or two-sided internal thread (long nut). For precise positioning of a spacer bolt with an internal thread or external thread, MISUMI also offers a centering pin in the ISO tolerance h7.
This variety enables virtually barrier-free assembly of the components to be joined with screws, internal threads and external threads or nuts.

Application Examples - Hexagonal Rods

Application example: spacer - spacer bolt with external thread on both sides - spacer with mounting plate

Application example: spacer bolt with external thread
(1) Spacer bolts with external thread on both sides, (2) mounting plate, (3) nut

Application example spacer - spacer with two-sided internal thread - spacer with mounting plate

Application example: spacer bolts with internal thread
(1) Spacer with internal thread on both sides, (2) mounting plate, (3) screw

Application example: spacer - spacer with internal thread and external thread - spacer with centering pin - spacer with mounting plate

Application example: spacer with tappet
(1) Distance bolts with centering pin, (2) mounting plate, (3) nut, (4) screw

Application example spacer - spacer with inner thread and external thread - spacer with mounting plate

Application example: threaded spacer pin
(1) spacer bolts with internal thread and external thread, (2) mounting plate, (3) nut, (4) screw

Industrial Applications

3D printer industry

Automotive industry

Pharmaceutical industry

Packaging industry

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

Part Number
SETK10-26-M5-N4

Part Number	Minimum order quantity	Volume Discount	Standard Shipping Days ?	RoHS	O.D. D (φ)	Length L (mm)	Material	Surface Treatment	Thread Dia. M (mm)	Screw Dia. N (mm)	Distance to Wrench Slot [SC] (mm)	H (mm)	Pilot Length G (mm)
	1		6 Days	10	10	26	[Stainless Steel] EN 1.4301 Equiv.	Not Provided	5	4	-	-	-

Back to the Category Distance elements (hexagonal, square, cylindrical)

Technical Drawing - Hexagonal Rods

Open the technical drawing in the new window

Specification Tables - Hexagonal Rods

■Both Ends Tapped

Part Number			L 1mm Increment	SC 1 mm Increment With Wrench Flats Only	M (Coarse) / N (Coarse) Selection								G 1mm Increment	H 1mm Increment	E	F	P	V	W	ℓ₁
Type		D	L 1mm Increment	SC 1 mm Increment With Wrench Flats Only	M (Coarse) / N (Coarse) Selection								G 1mm Increment	H 1mm Increment	E	F	P	V	W	ℓ₁
Pilot Selectable EN 1.0038 Equiv. NETJ ETKJ PETJ EN 1.4301 Equiv. SETJ	Pilot & Wrench Flats Configurable EN 1.0038 Equiv. NETJF ETKJF PETJF EN 1.4301 Equiv. SETJF	8	15~150	0~142	3	4							2~ 4	2~ 4	4	4	6	6	7	8
		10	15~350	0~342		4	5						2~ 5	2~ 5	5	5	8	8	8	8
		12	20~400	0~390			5	6					2~ 6	2~ 6	6	6	10	10	10	10
		15	25~500	0~490				6	8				2~ 8	2~ 8	8	8	12	12	13
		20	40~500	0~490				6	8	10	12		2~10	2~10	10	10	16	16	17
		25	55~600	0~590				6	8	10	12	16	2~12	2~12	12	12	20	20	22
		30	55~700	0~685				6	8	10	12	16	2~16	2~16	16	16	24	24	27	15

■One End Threaded One End Tapped

Part Number			L 1mm Increment	SC 1 mm Increment With Wrench Flats Only	M (Coarse) / N (Coarse) Selection								G 1mm Increment	H 1mm Increment	E	F	P	V	W	ℓ₁
Type		D	L 1mm Increment	SC 1 mm Increment With Wrench Flats Only	M (Coarse) / N (Coarse) Selection								G 1mm Increment	H 1mm Increment	E	F	P	V	W	ℓ₁
Pilot Selectable EN 1.0038 Equiv. NETK ETKK PETK EN 1.4301 Equiv. SETK	Pilot & Wrench Flats Configurable EN 1.0038 Equiv. NETKF ETKKF PETKF EN 1.4301 Equiv. SETKF	8	20~150	0~142	3	4							2~ 4	2~ 4	2	4	6	6	7	8
		10	20~350	0~342		4	5						2~ 5	2~ 5	2	5	8	8	8	8
		12	25~400	0~390			5	6					2~ 6	2~ 6	3	6	10	10	10	10
		15	30~500	0~490				6	8				2~ 8	2~ 8	4	8	12	12	13
		20	40~500	0~490				6	8	10	12		2~10	2~10	5	10	16	16	17
		25	60~600	0~590				6	8	10	12	16	2~12	2~12	6	12	20	20	22
		30	60~700	0~685				6	8	10	12	16	2~16	2~16	7	16	24	24	27	15

■Both Ends Threaded

Part Number			L 1mm Increment	SC 1mm Increment Wrench Flats only	M (Coarse) / N (Coarse) Selection									G 1mm Increment	H 1mm Increment	E	F	W	ℓ₁
Type		D	L 1mm Increment	SC 1mm Increment Wrench Flats only	M (Coarse) / N (Coarse) Selection									G 1mm Increment	H 1mm Increment	E	F	W	ℓ₁
Pilot Selectable EN 1.0038 Equiv. NETM ETKM PETM EN 1.4301 Equiv. SETM	Pilot & Wrench Flats Configurable EN 1.0038 Equiv. NETMF ETKMF PETMF EN 1.4301 Equiv. SETMF	8	20~150	0~142	3	4	5							2~ 4	2~ 4	4	4	7	8
		10	20~350	0~342		4	5	6						2~ 5	2~ 5	5	5	8	8
		12	25~400	0~390			5	6	8					2~ 6	2~ 6	6	6	10	10
		15	30~500	0~490				6	8	10				2~ 8	2~ 8	8	8	13
		20	40~500	0~490				6	8	10	12			2~10	2~10	10	10	17
		25	60~600	0~590				6	8	10	12	16		2~12	2~12	12	12	22
		30	60~700	0~685				6	8	10	12	16	20	2~16	2~16	16	16	27	15

L Dimension Tolerance
L 15~300 ±0.1
L301~600 ±0.3
L601~700 ±0.4
However, when L≤200, and when the order volume at one time is less than 10 pcs., the processing is done simultaneously. The difference in L dimension in one order is within ±0.02.

Alterations - Hexagonal Rods

Circular Posts - Inlay Type:Related Image

Products homepage

Basic information

Scale	W/o Scale	Pilot (Concave-Convex at End)	Provided

Configure

1Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Basic Attributes

O.D. D(φ)
8

10

12

15

20

25

30
Clear
Material
- Steel
  - EN 1.0038 Equiv.
- Stainless Steel
  - EN 1.4301 Equiv.
Clear
Surface Treatment
- Not Provided
- Black Oxide
- Electroless Nickel Plating
Clear
Distance to Wrench Slot [SC](mm)
Clear
H(mm)
1

2

4

5

6

8

10

12

16
Clear
Pilot Length G(mm)
1

2

4

5

6

8

10

12

16
Clear
Type
- ETKJ
- ETKJF
- ETKK
- ETKKF
- ETKM
- ETKMF
- NETJ
- NETJF
- NETK
- NETKF
- NETM
- NETMF
- PETJ
- PETJF
- PETK
- PETKF
- PETM
- PETMF
- SETJ
- SETJF
- SETK
- SETKF
- SETM
- SETMF
Clear
Length L(mm)
[20-350/1mm Unit(s)]
Clear
Thread Dia. M(mm)
3

4

5

6

8

10

12

16

20
Clear
Screw Dia. N(mm)
3

4

5

6

8

10

12

16

20
Clear
Filter by CAD data type
- 2D
- 3D
Clear

Filter by standard shipping days

All

4 Days or Less

6 Days or Less
Reset

Optional Attributes

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Frequently Asked Questions (FAQ)

Question:
Do you also have hollow spacers?: Answer:
Spacers or spacer bolts are generally made of solid material. However, if a hollow spacer is required, MISUMI also offers spacer sleeves. These are configurable like the spacers and can be adapted to the required dimensions. For precise distance, we recommend selecting simultaneous grinding spacer sleeves.
Question:
Are the spacers stainless?: Answer:
The spacers and spacer bolts can be selected in stainless steel and in steel with surface coating. To select the coating, the spacers are available in burnished, chemically nickel-plated, clear anodized, chromated. Thus, depending on the application, the spacer bolts are protected against corrosion.
Question:
Do you have spacer bolts with an undercut?: Answer:
MISUMI offers an additional option [FC] the spacer bolts for an undercut. With this option, a cutout is added to the external thread of the spacer bolt. The dimensions of the cutout can be found in the overview as a PDF.
