Rod End Bearings / 90 Deg. Link Ball Type (RBLDL5)

CatálogoP.2-1566

Número de pieza:

RBLDL5

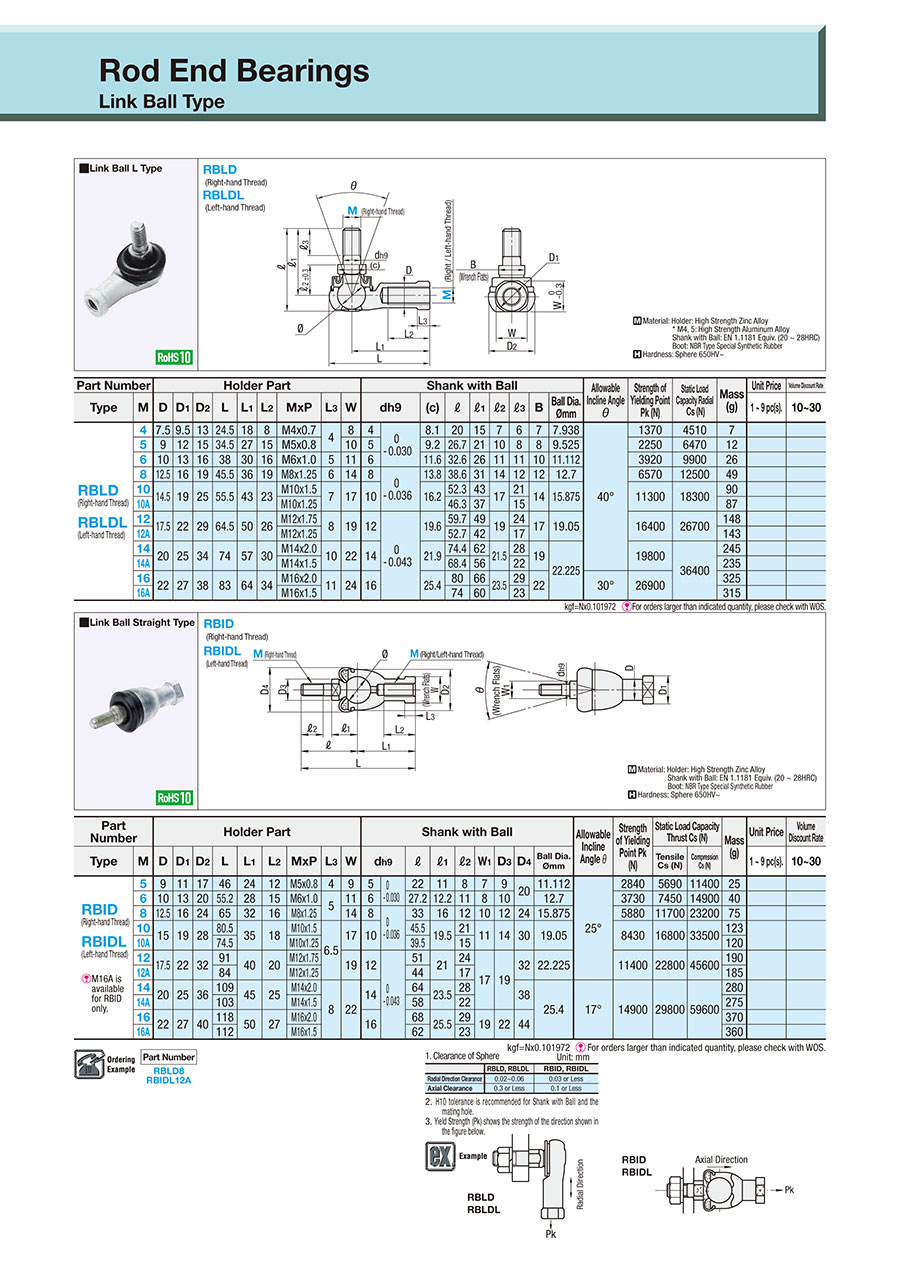

Plano de contorno y tabla de especificaciones
Lista de números de pieza
Información detallada
Catálogo

Plano de contorno y tabla de especificaciones

RBLD (Right-Hand Thread)

RBLDL (Left-Hand Thread)

[M] Material			[H] Hardness
Holder	Shank with Ball	Boot	Sphere Part
High Strength Zinc Alloy * M4·5: High Strength Aluminum Alloy	EN 1.1181 Equiv. (20 to 28HRC)	NBR Type Special Synthetic Rubber	650HV or more

Specification Table

Part Number

RBLD8
RBIDL12A

Part Number		Holder Part									Shank with Ball									Allowable Incline Angle θ	Strength of Yielding Point Pk (N)	Static Load Capacity Radial Cs (N)	Mass (g)
Type	M	D	D₁	D₂	L	L₁	L₂	M × P	L₃	W	d_h9		(c)	ℓ	ℓ₁	ℓ₂	ℓ₃	B	Ball Dia. ⌀mm
RBLD (Right-Hand Thread) RBLDL (Left-hand Thread)	4	7.5	9.5	13	24.5	18	8	M4 × 0.7	4	8	4	0 − 0.030	8.1	20	15	7	6	7	7.938	40°	1370	4510	7
	5	9	12	15	34.5	27	15	M5 × 0.8		10	5		9.2	26.7	21	10	8	8	9.525		2250	6470	12
	6	10	13	16	38	30	16	M6 × 1.0	5	11	6		11.6	32.6	26	11	11	10	11.112		3920	9900	26
	8	12.5	16	19	45.5	36	19	M8 × 1.25	6	14	8	0 − 0.036	13.8	38.6	31	14	12	12	12.7		6570	12500	49
	10	14.5	19	25	55.5	43	23	M10 × 1.5	7	17	10		16.2	52.3	43	17	21	14	15.875		11300	18300	90
	10 A							M10 × 1.25						46.3	37		15						87
	12	17.5	22	29	64.5	50	26	M12 × 1.75	8	19	12	0 − 0.043	19.6	59.7	49	19	24	17	19.05		16400	26700	148
	12 A							M12 × 1.25						52.7	42		17						143
	14	20	25	34	74	57	30	M14 × 2.0	10	22	14		21.9	74.4	62	21.5	28	19	22.225		19800	36400	245
	14 A							M14 × 1.5						68.4	56		22						235
	16	22	27	38	83	64	34	M16 × 2.0	11	24	16		25.4	80	66	23.5	29	22		30°	26900		325
	16 A							M16 × 1.5						74	60		23						315

[ ! ] Yield Strength (Pk) shows the strength of the direction shown in each figure in the "App. Example" section at the bottom of the page.kgf = N × 0.101972

Lista de números de pieza

Número de artículos

Número de pieza

RBLDL5

Main Body Material

Connecting Threads

Connection screw direction

Static load capacity radial

(N)

Allowable Incline Angle θ

(deg)

RoHS?

Cantidad mínima de pedido

High Strength Aluminum Alloy

Left-hand Thread

6470

1 piezas

Precio unitario (IVA no incluidos)(precio unitario IVA incluidos)	Fecha de envío estándar

6.05 €

( 7.20 € )

Artículo en stock: 1 día laborableDisponible para envío el mismo día

Información básica

[Material] Holder: High strength zinc alloy, Shaft with ball: EN 1.1181 Equiv. (20 to 28HRC), Boot: NBR type special synthetic rubber "Hardness" Spherical part: 650HV or more.
