[Simplified Adjustments] Z-Axis Scaled Post Unit (ZKB20-200-110)
![[Simplified Adjustments] Z-Axis Scaled Post Unit ZKB20-200-110](https://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302197150.jpg?$product_main)
- Precio unitario (IVA no incluidos)
- 176.32 €
- Total (IVA no incluidos)
- 176.32 €Precio IVA incluidos:209.82 €
- Días previstos de envío
- 9 días laborablesFecha de envío de referencia: 22.09.2025
| Cantidad | 1 - 5 | 6+ |
|---|---|---|
| Precio unitario (IVA no incluidos) (Precio unitario IVA incluidos) | 176.32 € ( 209.82 € ) | 176.32 € ( 209.82 € ) |
| Días de envío | Loading... | Loading... |
- * Información sobre días de envío, gastos de envío y precios

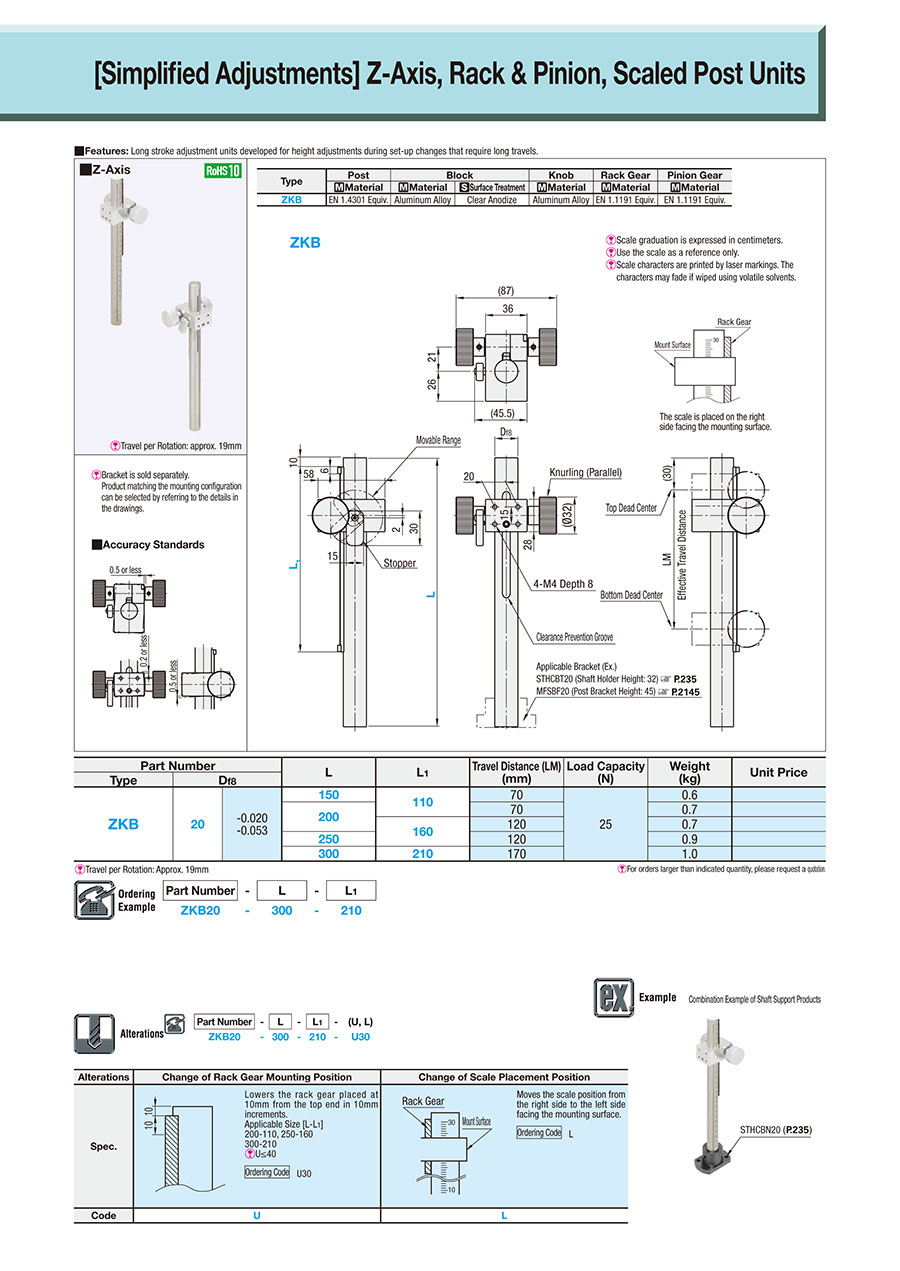

Plano de contorno y tabla de especificaciones
ZKB
![[Simple Adjustment]Z-Axis Rack & Pinion - Scaled Post Units: Related Image](//uk.misumi-ec.com/linked/item/10302197150/img/drw_01_001.gif)
[!] Scale graduation is expressed in 10 mm increments. [!] Use the scale as a reference only.
[ ! ] Scale characters are printed by laser markings.
If wiped with volatile oil, the prints may fade.
[!] Bracket is sold separately. Product matching the mounting configuration can be selected by referring to the details in the drawings.
![[Simple Adjustment]Z-Axis Rack & Pinion - Scaled Post Units: Related Image](http://uk.misumi-ec.com/linked/item/10302197150/img/drw_01_001.gif)
[!] Scale graduation is expressed in 10 mm increments. [!] Use the scale as a reference only.
[ ! ] Scale characters are printed by laser markings.
If wiped with volatile oil, the prints may fade.
[!] Bracket is sold separately. Product matching the mounting configuration can be selected by referring to the details in the drawings.
■ Accuracy Standards
 | Not recommended for precise positioning due to its clearance shown on the left. |
| Type | Post | Block | Knob | Rack Gear | Pinion Gear | |
| Material | Material | Surface Treatment | Material | Material | Material | |
| ZKB | EN 1.4301 Equiv. | Aluminum Alloy | Clear Anodize | Aluminum Alloy | EN 1.1191 Equiv. | EN 1.1191 Equiv. |
Specification Table
| Part Number | — | L | — | L1 |
| ZKB20 | — | 300 | — | 210 |
| Part Number | L | L1 | Travel Distance (LM) (mm) | Load Capacity (N) | Weight (kg) | ||
| Type | Df8 | ||||||
| ZKB | 20 | −0.020 −0.053 | 150 | 110 | 70 | 25 | 0.6 |
| 200 | 70 | 0.7 | |||||
| 160 | 120 | 0.7 | |||||
| 250 | 120 | 0.9 | |||||
| 300 | 210 | 170 | 1.0 | ||||
Alterations
![[Simple Adjustment]Z-Axis Rack & Pinion - Scaled Post Units: Related Image](http://uk.misumi-ec.com/linked/item/10302197150/img/alt_01_001.gif)
| Alterations | Change of Rack Gear Mounting Position | Change of Scale Placement Position | ||||
| Spec. |
|
| ||||
| Code | U | L |
