Electroconductive Rubber Feet with Collar【4 a 16 piezas】 (ECRKC15)
Ponga el cursor sobre la imagen para agrandar

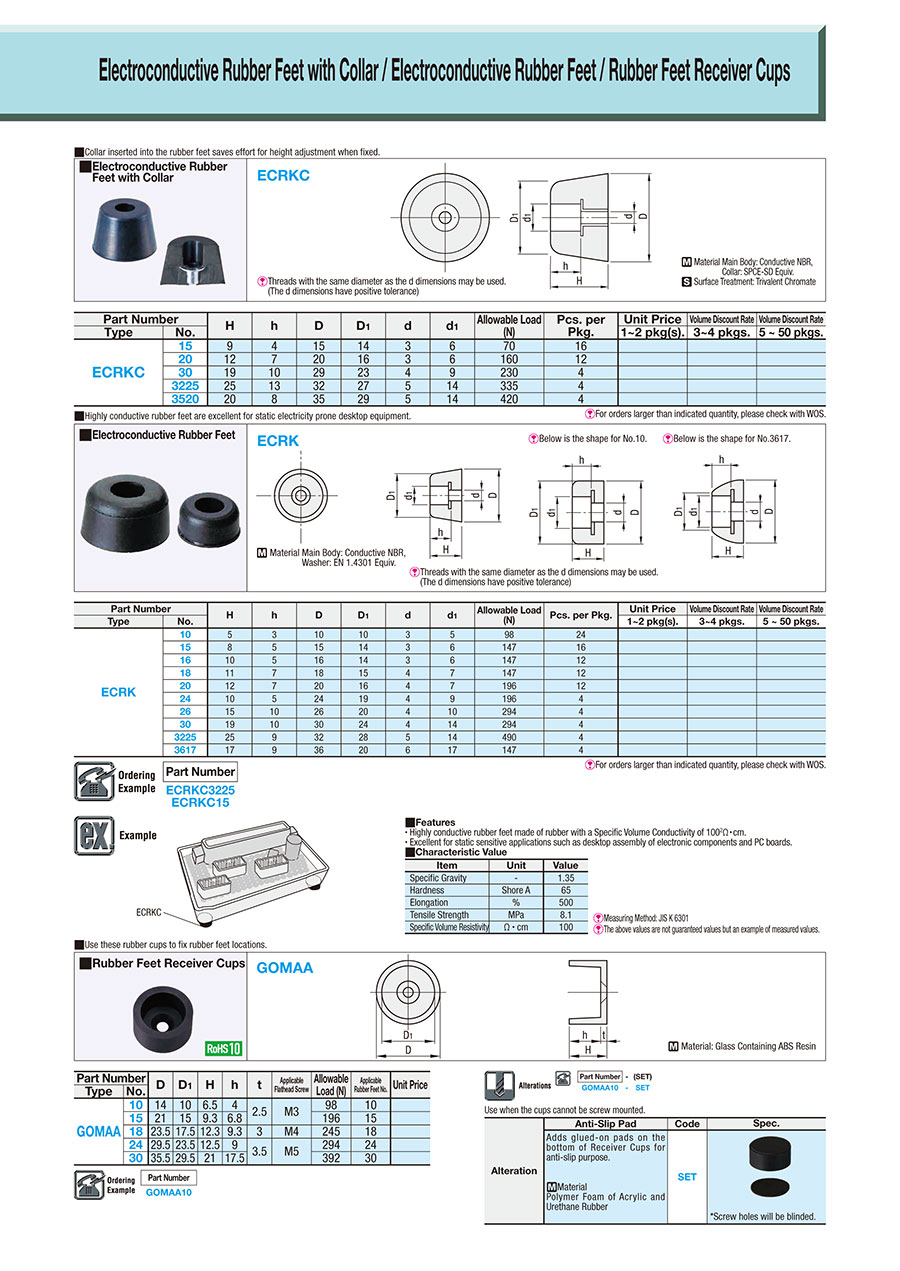

Plano de contorno y tabla de especificaciones
ECRKC
[!] Threads with the same diameter as the d dimensions may be used. (The d dimensions have positive tolerance)
[M]Material Main body: Conductive NBR
Collar: SPCE-SD Equivalent
[S]Surface treatment: trivalent chromate
Collar: SPCE-SD Equivalent
[S]Surface treatment: trivalent chromate
Specification Table
| Part Number |
| ECRKC3225 ECRKC15 |
| Part Number | H | h | D | D1 | d | d1 | Allowable Load (N) | 1 pkg. Number of pieces | |
| Type | No. | ||||||||
| ECRKC | 15 | 9 | 4 | 15 | 14 | 3 | 6 | 70 | 16 |
| 20 | 12 | 7 | 20 | 16 | 3 | 6 | 160 | 12 | |
| 30 | 19 | 10 | 29 | 23 | 4 | 9 | 230 | 4 | |
| 3225 | 25 | 13 | 32 | 27 | 5 | 14 | 335 | 4 | |
| 3520 | 20 | 8 | 35 | 29 | 5 | 14 | 420 | 4 | |
Información detallada
Información básica
Highly conductive rubber foot has a built-in collar for easy height adjustment.
Contorno y especificaciones
Specifications / Overview
■ Features
·Highly conductive rubber feet made of rubber with a Specific Volume Conductivity of 1002 Ω·cm.
· Excellent for static sensitive applications such as desktop assembly of electronic components and PC boards.
■ Characteristic Values
[ ! ] Measuring Method: JIS K 6301.
[ ! ] The above values are not guaranteed values but an example of measured values.
·Highly conductive rubber feet made of rubber with a Specific Volume Conductivity of 1002 Ω·cm.
· Excellent for static sensitive applications such as desktop assembly of electronic components and PC boards.
■ Characteristic Values
| Item | Unit | Value |
| Specific Gravity | — | 1.35 |
| Hardness | Shore A | 65 |
| Elongation | % | 500 |
| Tensile Strength | Mpa | 8.1 |
| Specific Volume Resistivity | Ω·cm | 100 |
[ ! ] The above values are not guaranteed values but an example of measured values.
App. Example
