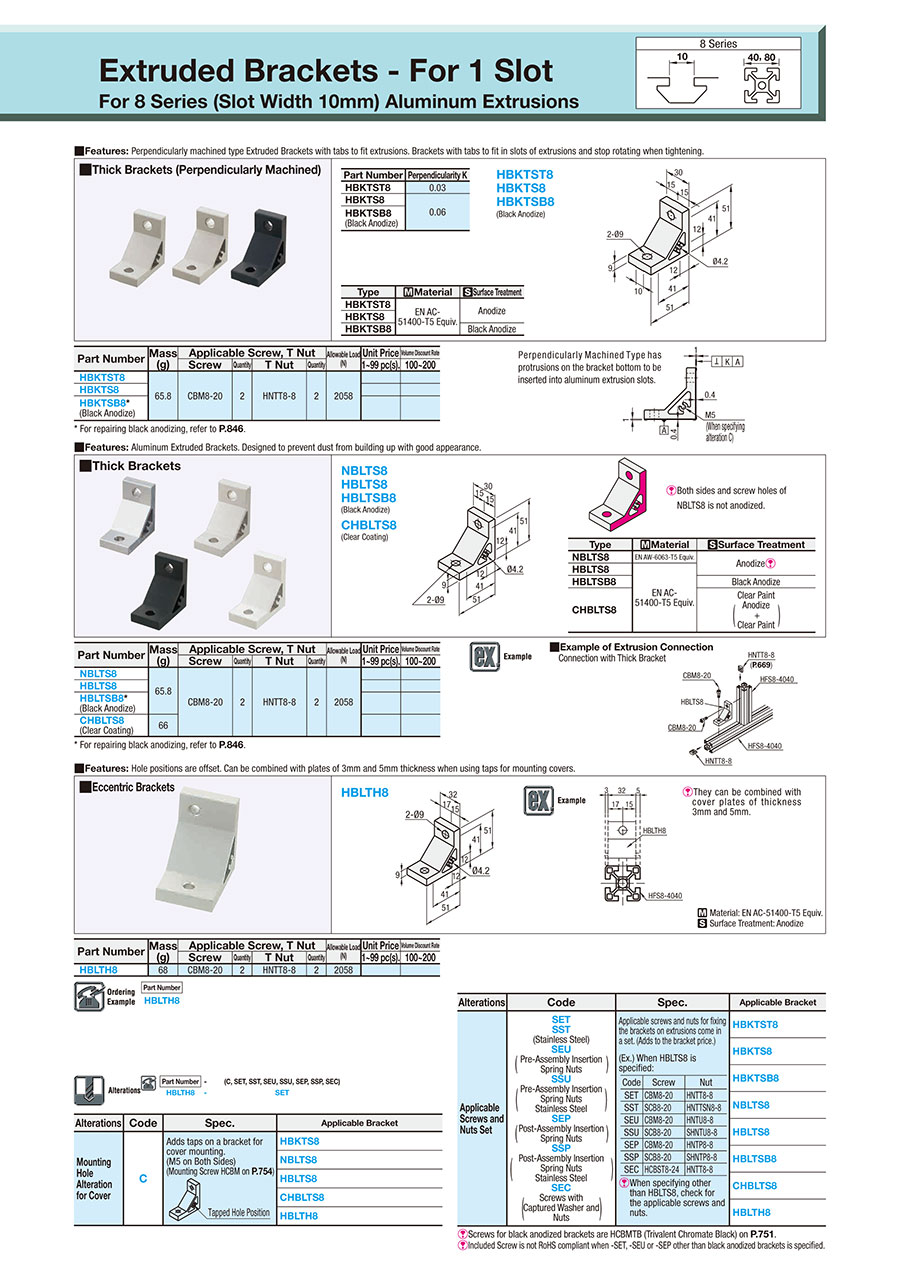

8 Series For 1 Slot / Extruded Thick Brackets
Número de pieza:
candidatos encontrados.Plano de contorno y tabla de especificaciones
HBKTST8
HBKTS8
HBKTSB8 (Black Anodize)
HBKTS8
HBKTSB8 (Black Anodize)
Perpendicularly Machined Type has protrusions on the bracket bottom to be inserted into aluminum extrusion slots.
| Part Number | Perpendicularity K |
| HBKTST8 | 0.03 |
| HBKTS8 | 0.06 |
| HBKTSB8 (Black Anodize) |
| Type | [M] Material | [S] Surface Treatment |
| HBKTST8 | EN AW−6061−T5 Equiv. | Anodize |
| HBKTS8 | ||
| HBKTSB8 | Black Anodize |
Specification Table
| Part Number |
| HBKTST8 HBKTS8 HBKTSB8 |
| Part Number | Mass (g) | Applicable Screw, T Nut | Allowable Load (N) | |||
| Screws | Quantity | T Nut | Quantity | |||
| HBKTST8 | 65.8 | CBM8−20 | 2 | HNTT8−8 | 2 | 2058 |
| HBKTS8 | ||||||
| HBKTSB8* (Black Anodize) | ||||||
Alterations
| Part Number | — | (C·SET·SST·SEU·SSU·SEP·SSP·SEC) |
| HBKTS8 HBKTS8 | — — | SET C−SET |
| Alterations | Code | Spec. | Applicable Bracket |
| Mounting Hole Alteration for Cover | C | Adds taps on a bracket for cover mounting. (M5 on Both Sides) (Mounting Screw HCBM)  | HBKTS8 |
| NBLTS8 | |||
| HBLTS8 | |||
| CHBLTS8 | |||
| HBLTH8 |
| Alterations | Code | Spec. | Applicable Bracket | |||||||||||||||||||||||||||||||||
| Applicable Screws and Nuts Set Nuts Set | SET SST (Stainless Steel) SEU (Pre-Assembly Insertion Spring Nuts) SSU (Pre-Assembly Insertion Spring Nuts Stainless steel) SEP (Post-Assembly Insertion Spring Nuts) SSP (Post-Assembly Spring Nut Stainless steel) SEC (Screws with Captured Washer and Nuts) | Applicable screws and nuts for fixing the brackets on extrusions come in a set. Example: When HBLTS8 is specified
[ ! ] When specifying other than HBLTS8, check for the applicable screws and nuts respectively. | — | |||||||||||||||||||||||||||||||||
| HBKTST8 | ||||||||||||||||||||||||||||||||||||
| HBKTS8 | ||||||||||||||||||||||||||||||||||||
| HBKTSB8 | ||||||||||||||||||||||||||||||||||||
| NBLTS8 | ||||||||||||||||||||||||||||||||||||
| HBLTS8 | ||||||||||||||||||||||||||||||||||||
| HBLTSB8 | ||||||||||||||||||||||||||||||||||||
| CHBLTS8 | ||||||||||||||||||||||||||||||||||||
| HBLTH8 | ||||||||||||||||||||||||||||||||||||
[ ! ] Included Screw is not RoHS compliant when -SET, -SEU or -SEP is specified for any bracket other than black anodized ones.
Alteration Details
■Mounting Hole Alteration for Cover (-C)
M5 tapped holes can be added on both sides.
Alteration part number example: HBKTS8-C
■Set of applicable Screws and Nuts Details
| Alteration Part Number | Screws | Nut | ||||
|---|---|---|---|---|---|---|
| Part Number | Material | Type | Part Number | Material | Stopper | |
| SET | CBM8-20 | Steel | Pre-Assembly | HNTT8-8 | Steel | Not Provided |
| SST | SCB8-20 | Stainless Steel | Pre-Assembly | HNTTSN8-8 | Stainless Steel | Not Provided |
| SEU | CBM8-20 | Steel | Pre-Assembly | HNTU8-8 | Steel | Provided |
| SSU | SCB8-20 | Stainless Steel | Pre-Assembly | SHNTU8-8 | Stainless Steel | Provided |
| SEP | CBM8-20 | Steel | Post-Assembly | HNTP8-8 | Steel | Provided |
| SSP | SCB8-20 | Stainless Steel | Post-Assembly | SHNTP8-8 | Stainless Steel | Provided |
| SEC | HCBST8-24 | Steel (With Washers) | Pre-Assembly | HNTT8-8 | Steel | Not Provided |
Product Features
Perpendicularly Machined Type Extruded Brackets with tabs to fit extrusions.
Since the tabs stop rotating the brackets when tightening, work efficiency is improved.
This product guarantees perpendicularity.
HBKTST8: Perpendicularity 0.03
HBKTS8, HBKTSB8: Perpendicularity 0.06
Similar Products
■8 Series (Slot Width 10 mm) - For 1 Slot, Extruded Thick Brackets
| Product Name | Thick Brackets | Ultra Thick Brackets | Thick Brackets / Triangle Brackets | Offset Brackets | Unequal Sided Brackets | Brackets for Connecting Different Sizes of Extrusions Brackets | Thin Brackets |
|---|---|---|---|---|---|---|---|
| Product Photo |
|
|
|
|
|
|
|
| Features | Made of the same material as aluminum extrusions with anodizing. Suitable when appearance well balanced with the extrusions is desired. | Numbers of screws are the same as those of thick brackets. Extrusions can be connected more securely. | Two mounting holes are provided on one side. Extrusions can be connected more securely with 4 screws. | Hole positions are offset. Can be combined with plates of 3 mm and 5 mm thickness when mounting plates on the side. | The vertical and horizontal lengths are unequal to each other. Usable where space is narrow. | Staggered mounting holes. Brackets to connect 40 and 30 square Extrusions. | The brackets do not protrude from extrusion widths when used to cross connect extrusions. Suitable for use in limited space. |
| Allowable Load | 2058 | 2058 | 3087 | 2058 | 2572 | — | 1666 |
| Representative models | NBLTS8 | HBLUS8 | HBLTSW8 (Thick Type) | HBLTH8 | HBLTF8 | HBLTS8-6L | HBLSS8 |
| This Product | HBKUS8 (Perpendicularly Machined) | HBLDSWT8 (Triangle) |
■Difference between extruded brackets and tabbed brackets
| [This Product]Extruded Brackets
| ·The extruded brackets are made of EN AW−6061−T5 Equiv., manufactured by aluminum extrusion. Surfaces are anodized. ·Suitable when appearance well balanced with the extrusions is desired. Designed to prevent dust from building up. ·With more strength than tabbed brackets, it is ideal for areas that require strength. |
| Tabbed Brackets
| ·The tabbed brackets are molded brackets made of EN AC−46100 Equiv. material. With no anodize treatment as a rule, the prices are economical compared to extruded brackets of the same size. ·Since the tabs stop rotating the brackets when tightening, work efficiency is improved. ·Various types of brackets with additional functions are available. |
Technical Information
■How to Specify Allowable Load of Bracket
This represents the allowable load per bracket for the extrusion assembly structured by bridging a beam extrusion between two vertical extrusions and then, attaching a bracket just below the bottom face of each end of the beam extrusion.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.
Lista de números de pieza
Número de artículos
| Número de pieza |
|---|
Precio unitario (IVA no incluidos)(precio unitario IVA incluidos) | Fecha de envío estándar |
|---|
2.51 € ( 2.99 € ) | Artículo en stock: 1 día laborableDisponible para envío el mismo día |
2.88 € ( 3.43 € ) | Artículo en stock: 1 día laborableDisponible para envío el mismo día |
5.15 € ( 6.13 € ) | 5 días laborables |
4.61 € ( 5.49 € ) | 5 días laborables |
4.28 € ( 5.09 € ) | 5 días laborables |
4.61 € ( 5.49 € ) | 5 días laborables |
4.79 € ( 5.70 € ) | 5 días laborables |
4.28 € ( 5.09 € ) | 5 días laborables |
5.34 € ( 6.35 € ) | 5 días laborables |
4.77 € ( 5.68 € ) | 5 días laborables |
4.24 € ( 5.05 € ) | 5 días laborables |
3.92 € 2.39 € ( 2.84 € ) | Artículo en stock: 1 día laborableDisponible para envío el mismo día |
4.24 € ( 5.05 € ) | 5 días laborables |
4.42 € ( 5.26 € ) | 5 días laborables |
3.92 € ( 4.66 € ) | 5 días laborables |
4.95 € ( 5.89 € ) | 5 días laborables |
3.25 € ( 3.87 € ) | 5 días laborables |
5.54 € ( 6.59 € ) | 5 días laborables |
5.01 € ( 5.96 € ) | 5 días laborables |
5.54 € ( 6.59 € ) | 5 días laborables |
5.01 € ( 5.96 € ) | 5 días laborables |
5.18 € ( 6.16 € ) | 5 días laborables |
4.68 € ( 5.57 € ) | 5 días laborables |
5.72 € ( 6.81 € ) | 5 días laborables |
2.56 € ( 3.05 € ) | Artículo en stock: 1 día laborableDisponible para envío el mismo día |
4.84 € ( 5.76 € ) | 5 días laborables |
4.31 € ( 5.13 € ) | 5 días laborables |
3.99 € ( 4.75 € ) | 5 días laborables |
4.31 € ( 5.13 € ) | 5 días laborables |
4.47 € ( 5.32 € ) | 5 días laborables |
3.99 € 2.59 € ( 3.08 € ) | Artículo en stock: 1 día laborableDisponible para envío el mismo día |
5.02 € ( 5.97 € ) | 5 días laborables |
