Condiciones del filtro

8 Series / slot width 10 / 80x80mm

Precaución

  • Cutting is free for this product. Please specify the length you prefer.

Número de pieza:

Sin liquidar. 6 candidatos encontrados.
Cantidad:

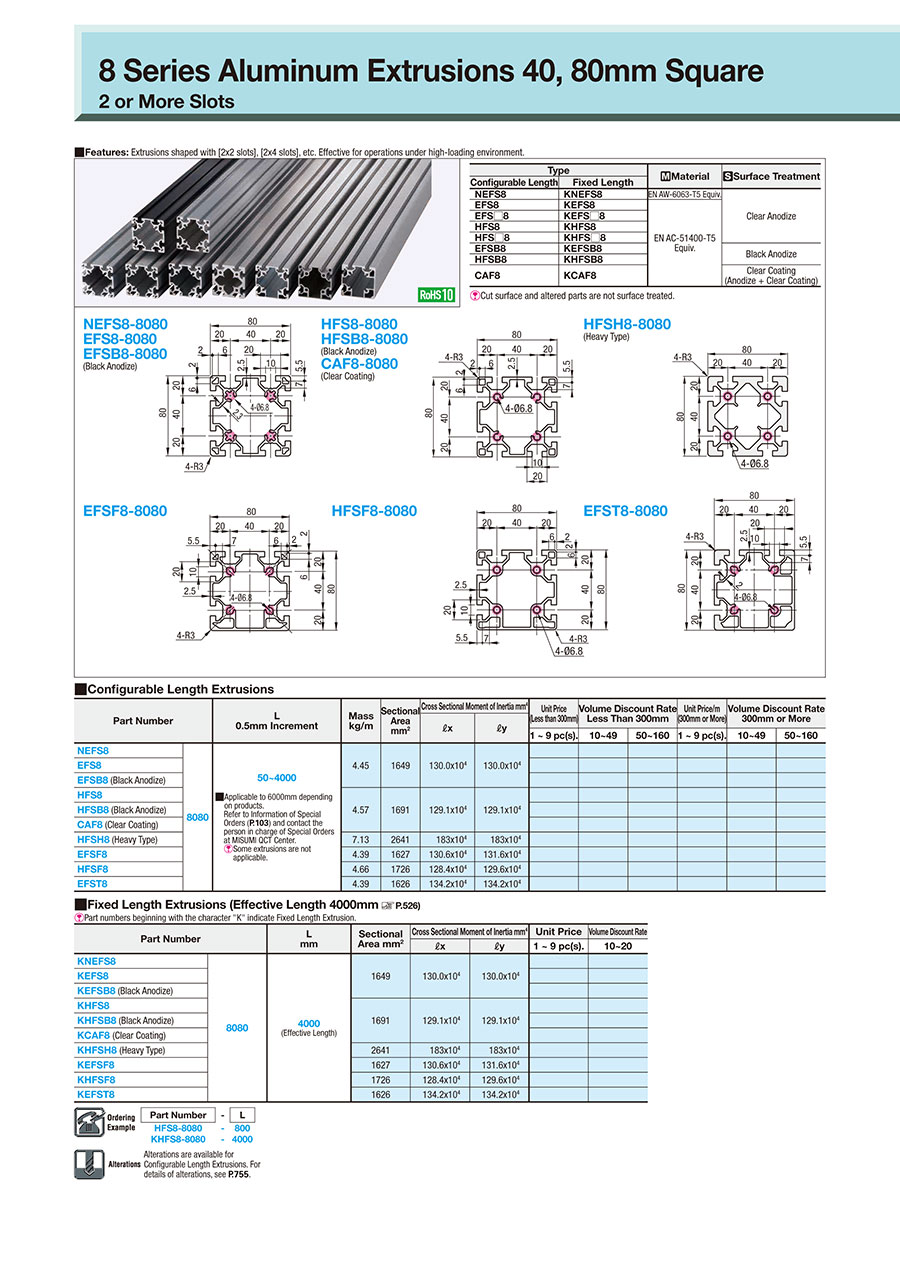

Plano de contorno y tabla de especificaciones





Specifications

Part Number - L
HFS8-8080 - 800
KHFS8-8080 - 4000
■Configurable Length Extrusions
Type Material Surface Treatment Part Number L
0.5mm Increment
Mass
kg/m
Sectional Area mm2 Cross Sectional Moment of Inertia mm4
ℓx ℓy
HFS EN AC-51400-T5 Equiv. Clear Anodize HFS8-8080 50~4000 4.57 1691 129.1x104 129.1x104
HFS EN AC-51400-T5 Equiv. Clear Anodize HFSH8-8080 50~4000 7.13 2641 183x104 183x104
HFS EN AC-51400-T5 Equiv. Black Anodize HFSB8-8080 50~4000 4.57 1691 129.1x104 129.1x104
HFS EN AC-51400-T5 Equiv. Clear Coating CAF8-8080 50~4000 4.57 1691 129.1x104 129.1x104
EFS EN AC-51400-T5 Equiv. Clear Anodize EFS8-8080 50~4000 4.45 1649 130.0x104 130.0x104
EFS EN AC-51400-T5 Equiv. Black Anodize EFSB8-8080 50~4000 4.45 1649 130.0x104 130.0x104
NEFS EN AW-6063-T5 Equiv. Clear Anodize NEFS8-8080 50~4000 4.45 1649 130.0x104 130.0x104
Applicable to 6000mm depending on products.
For some extrusions, MISUMI may be unable to accept the order. Refer to Information of Special Orders (P.103) and contact the person in charge of Special Orders at MISUMI QCT Center.

■Fixed Length Extrusions (Effective Length 4000mm)
Part numbers beginning with the character "K" indicate Fixed Length Extrusion.
Type Material Surface Treatment Part Number L
mm
Sectional Area mm2 Cross Sectional Moment of Inertia mm4
ℓx ℓy
HFS EN AC-51400-T5 Equiv. Clear Anodize KHFS8-8080 4000 1691 129.1x104 129.1x104
HFS EN AC-51400-T5 Equiv. Clear Anodize KHFSH8-8080 4000 2641 183x104 183x104
HFS EN AC-51400-T5 Equiv. Black Anodize KHFSB8-8080 4000 1691 129.1x104 129.1x104
HFS EN AC-51400-T5 Equiv. Clear Coating KCAF8-8080 4000 1691 129.1x104 129.1x104
EFS EN AC-51400-T5 Equiv. Clear Anodize KEFS8-8080 4000 1649 130.0x104 130.0x104
EFS EN AC-51400-T5 Equiv. Black Anodize KEFSB8-8080 4000 1649 130.0x104 130.0x104
NEFS EN AW-6063-T5 Equiv. Clear Anodize KNEFS8-8080 4000 1649 130.0x104 130.0x104
"Effective Length 4000mm" represents the extrusion with 4000mm or more effective length. The actual length with extra lengths on ends is more than 4000mm (several tens of mm). Fixed Length Extrusions need to be cut by users thus the exact length cannot be specified.

Alterations

8 Series/slot width 10/80x80mm:Related Image

Lista de números de pieza

Número de artículos

Surface Treatment

Number of Grooved Surfaces

L Dimension Fixed, Specified

Overall Length L (Effective Length)

(mm)

Overall Length L

(mm)

RoHS?Cantidad mínima de pedido
Clear Anodize
4-Side Slot
Configuration
-
50 - 4000
-
1 piezas
Black Anodize
4-Side Slot
Configuration
-
50 - 4000
10
1 piezas
Clear Anodize
Two-Side Slots (Opposed)
Configuration
-
50 - 4000
10
1 piezas
Clear Anodize
4-Side Slot
Stationary
4000
-
-
1 piezas
Black Anodize
4-Side Slot
Stationary
4000
-
10
1 piezas
Clear Anodize
Two-Side Slots (Opposed)
Stationary
4000
-
10
1 piezas
Precio unitario (IVA no incluidos)(precio unitario IVA incluidos)
Fecha de envío estándar
-
(
-
)
3 días laborables
-
(
-
)
3 días laborables
-
(
-
)
5 días laborables
216.84 €
(
258.04 €
)
3 días laborables
239.31 €
(
284.78 €
)
3 días laborables
574.97 €
(
684.21 €
)
5 días laborables

Información detallada

Información básica


Precaución

  • Cutting is free for this product. Please specify the length you prefer.
