Floating Connectors / Extra Short Type / Flange Mounting / Tapped (FJCC5-0.8)
Precaución
- Some M-Pitch are not available for FJCRT, FJCCT, FJCRS, and FJCCS types. Please check the Part numbers for details.
- Please check the contents of our website as the PDF does not contain the most up-to-date information.
Plano de contorno y tabla de especificaciones
| Screws | Type | Material | Surface Treatment | Hardness | Spring Material | |
| Round | Compact Type | |||||
| Tapped | FJCR | FJCC | EN 1.1191 Equiv. | Black Oxide | 40~45HRC | Spring Steel |
| FJCRT | FJCCT | Tufftride® | 500HV~ | Spring Stainless Steel | ||
| FJCRS | FJCCS | EN 1.4125 Equiv. | - | 40~45HRC | ||
Tufftride® may cause uneven color, which doesn't affect mechanical function.
Specifications
| Part Number |
| FJCR10-1.25 |

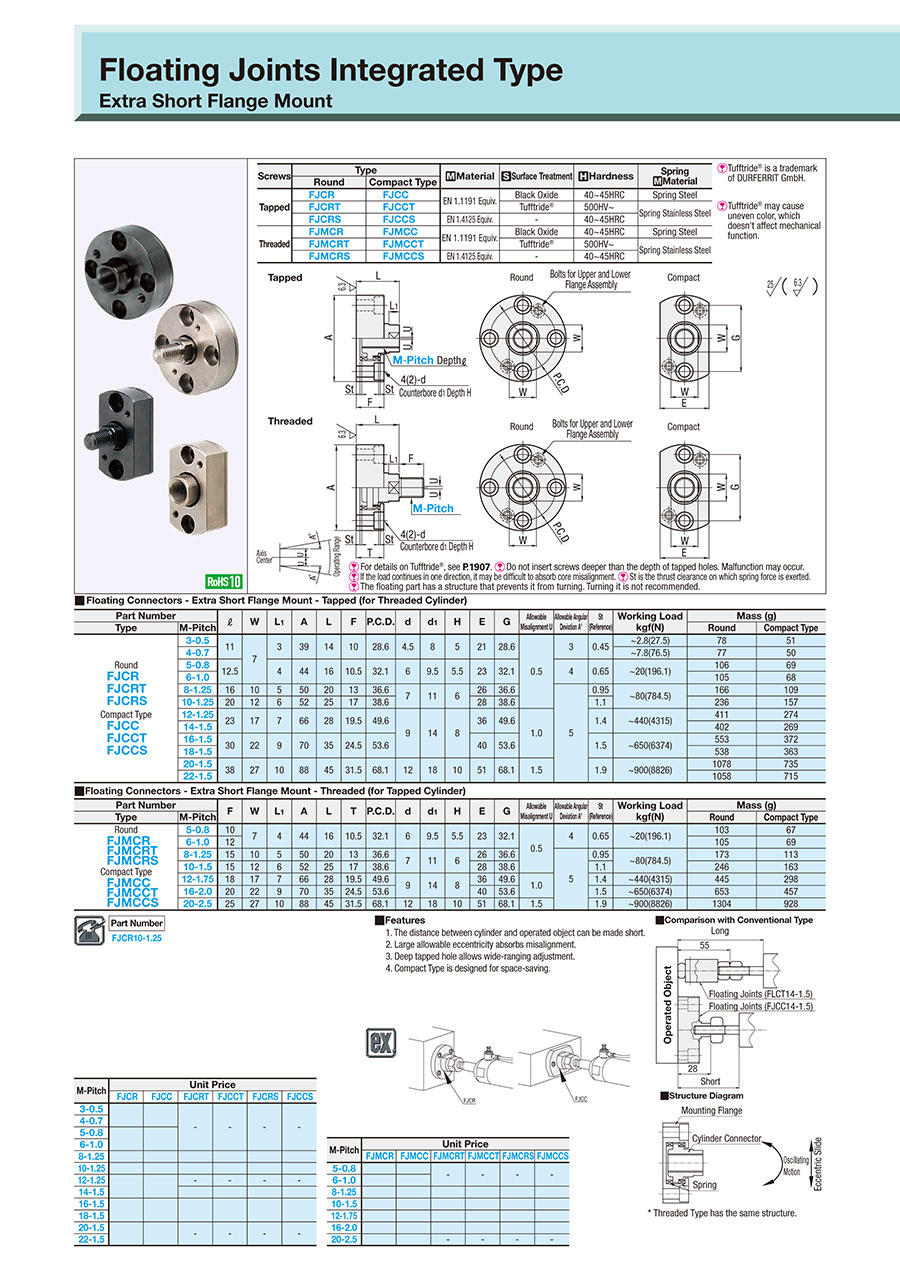

■ Floating Connectors - Extra Short Flange Mount - Tapped (for Threaded Cylinder)
| Part Number | ℓ | W | L1 | A | L | F | P.C.D. | d | d1 | H | E | G | Allowable Misalignment U | Allowable Angular Deviation A° | St (Reference) | Working Load kgf(N) | Mass (g) | ||
| Type | M-Pitch | Round | Compact Type | ||||||||||||||||
| Round FJCR FJCRT FJCRS Compact Type FJCC FJCCT FJCCS | 3-0.5 | 11 | 7 | 3 | 39 | 14 | 10 | 28.6 | 4.5 | 8 | 5 | 21 | 28.6 | 0.5 | 3 | 0.45 | ~2.8(27.5) | 78 | 51 |
| 4-0.7 | 11 | 7 | 3 | 39 | 14 | 10 | 28.6 | 4.5 | 8 | 5 | 21 | 28.6 | 0.5 | 3 | 0.45 | ~7.8(76.5) | 77 | 50 | |
| 5-0.8 | 12.5 | 7 | 4 | 44 | 16 | 10.5 | 32.1 | 6 | 9.5 | 5.5 | 23 | 32.1 | 0.5 | 4 | 0.65 | ~20(196.1) | 106 | 69 | |
| 6-1.0 | 12.5 | 7 | 4 | 44 | 16 | 10.5 | 32.1 | 6 | 9.5 | 5.5 | 23 | 32.1 | 0.5 | 4 | 0.65 | ~20(196.1) | 105 | 68 | |
| 8-1.25 | 16 | 10 | 5 | 50 | 20 | 13 | 36.6 | 7 | 11 | 6 | 26 | 36.6 | 0.5 | 5 | 0.95 | ~80(784.5) | 166 | 109 | |
| 10-1.25 | 20 | 12 | 6 | 52 | 25 | 17 | 38.6 | 7 | 11 | 6 | 28 | 38.6 | 0.5 | 5 | 1.1 | ~80(784.5) | 236 | 157 | |
| 12-1.25 | 23 | 17 | 7 | 66 | 28 | 19.5 | 49.6 | 9 | 14 | 8 | 36 | 49.6 | 1.0 | 5 | 1.4 | ~440(4315) | 411 | 274 | |
| 14-1.5 | 23 | 17 | 7 | 66 | 28 | 19.5 | 49.6 | 9 | 14 | 8 | 36 | 49.6 | 1.0 | 5 | 1.4 | ~440(4315) | 402 | 269 | |
| 16-1.5 | 30 | 22 | 9 | 70 | 35 | 24.5 | 53.6 | 9 | 14 | 8 | 40 | 53.6 | 1.0 | 5 | 1.5 | ~650(6374) | 553 | 372 | |
| 18-1.5 | 30 | 22 | 9 | 70 | 35 | 24.5 | 53.6 | 9 | 14 | 8 | 40 | 53.6 | 1.0 | 5 | 1.5 | ~650(6374) | 538 | 363 | |
| 20-1.5 | 38 | 27 | 10 | 88 | 45 | 31.5 | 68.1 | 12 | 18 | 10 | 51 | 68.1 | 1.5 | 5 | 1.9 | ~900(8826) | 1078 | 735 | |
| 22-1.5 | 38 | 27 | 10 | 88 | 45 | 31.5 | 68.1 | 12 | 18 | 10 | 51 | 68.1 | 1.5 | 5 | 1.9 | ~900(8826) | 1058 | 715 | |
Información detallada
Información básica
Precaución
- Some M-Pitch are not available for FJCRT, FJCCT, FJCRS, and FJCCS types. Please check the Part numbers for details.
- Please check the contents of our website as the PDF does not contain the most up-to-date information.
Contorno y especificaciones
More Information
■Features
1. The distance between cylinder and operated object can be made short.
2. Large allowable eccentricity absorbs misalignment.
3. Deep tapped hole allows wide-ranging adjustment.
4. Compact Type is designed for space-saving.
1. The distance between cylinder and operated object can be made short.
2. Large allowable eccentricity absorbs misalignment.
3. Deep tapped hole allows wide-ranging adjustment.
4. Compact Type is designed for space-saving.
Example of Use
