SMC

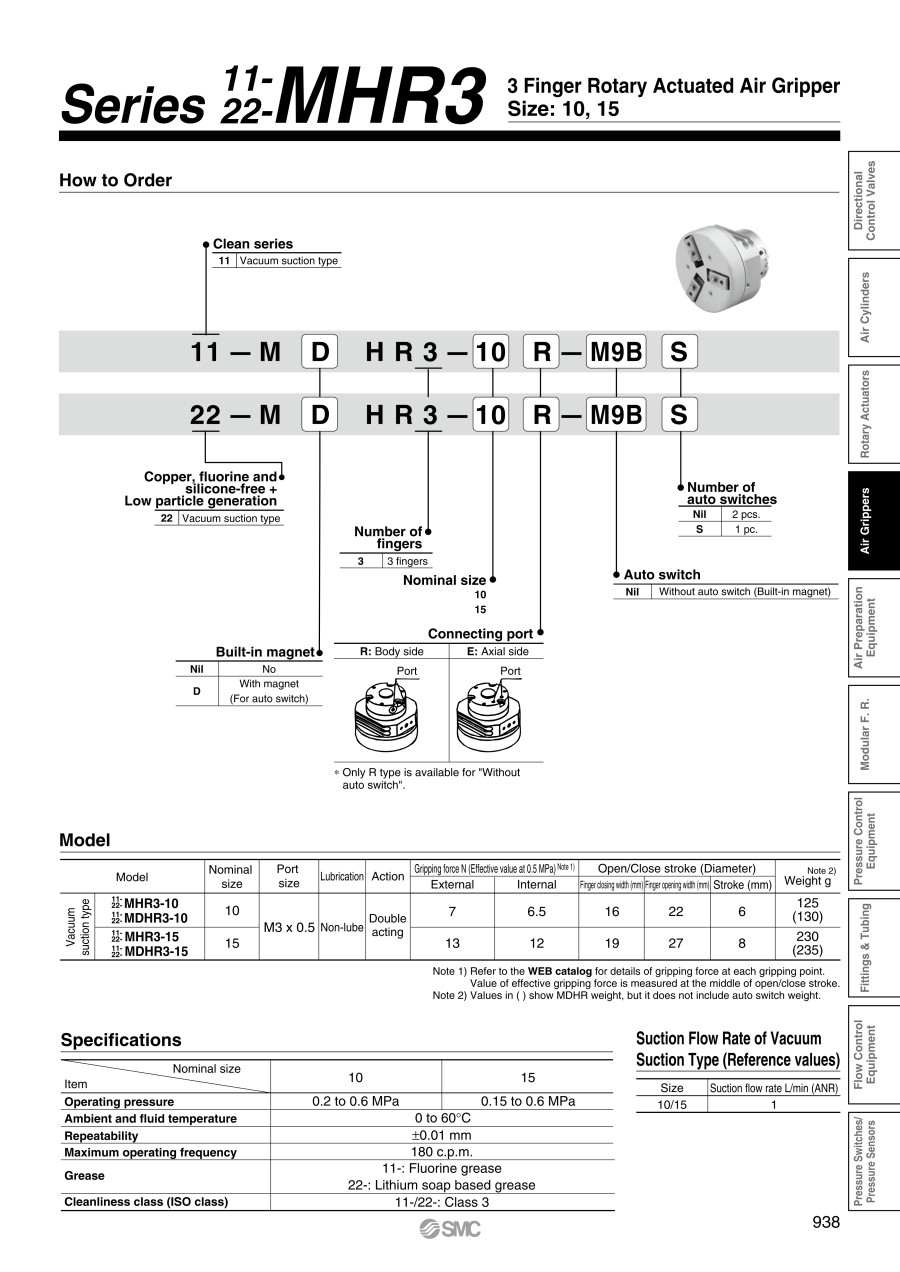

Rotary Drive Type Air Chuck 3-Jaw Type Clean, Low Dust Generation 11- / 22-MHR3 Series

Rotary Drive Type Air Chuck 3-Jaw Type Clean, Low Dust Generation 11- / 22-MHR3 Series

Precaución

  • Refer to the manufacturer's catalog for specification and material details.
  • The product images are representative only. Please refer to the manufacturer's catalog for shape details.
  • CAD data is not available for some model numbers.

Número de pieza:

Sin liquidar. 5 candidatos encontrados.
Cantidad:

Lista de números de pieza

Número de artículos
  • 1
    • Número de pieza
    11-MDHR3-10E
    11-MDHR3-10R
    11-MDHR3-15E
    11-MDHR3-15R
    22-MDHR3-10R

    Open Dimension L1

    (mm)

    Closed Dimension L2

    (mm)

    Gripping Force (when 0.5Mpa at opening)

    (N)

    Gripping Force (when 0.5Mpa at closing)

    (N)

    Environment, Applications

    Operating Pressure Range

    (MPa)

    Connection port location

    Type

    Nominal

    		Cantidad mínima de pedido
    11
    8
    6.5
    7
    Available in Cleanroom Environment
    0.2 - 0.6
    Axial side
    Clean Series (Vacuum type)
    10
    1 piezas
    11
    8
    6.5
    7
    Available in Cleanroom Environment
    0.2 - 0.6
    Direction from body side face
    Clean Series (Vacuum type)
    10
    1 piezas
    13.5
    9.5
    -
    13
    Available in Cleanroom Environment
    0.15 - 0.6
    Axial side
    Clean Series (Vacuum type)
    15
    1 piezas
    13.5
    9.5
    -
    13
    Available in Cleanroom Environment
    0.15 - 0.6
    Direction from body side face
    Clean Series (Vacuum type)
    15
    1 piezas
    11
    8
    6.5
    7
    Available in Cleanroom Environment / Copper-Based / Fluorine-Based Material Not Used
    0.2 - 0.6
    Direction from body side face
    Copper-Free/ Fluorine-Free/ Silicone Type-Free + low dust generation (Vacuum type)
    10
    1 piezas
    Precio unitario (IVA no incluidos)(precio unitario IVA incluidos)
    Fecha de envío estándar
    694.92 €
    (
    826.95 €
     )
    18 días laborables
    694.92 €
    (
    826.95 €
     )
    18 días laborables
    723.45 €
    (
    860.91 €
     )
    23 días laborables
    723.45 €
    (
    860.91 €
     )
    18 días laborables
    679.54 €
    (
    808.65 €
     )
    23 días laborables
  • 1

    • Información detallada

    Información básica

    [11-Series Clean Series]
    ・ This product can be used in a clean environment
    ・ Prevents dust generation in the cleanroom

    [22-Series, Copper-Free / Fluorine-Free / Silicone-Free + Low Dust Generation]
    ・ This product can be used in environments with restrictions on copper-based, fluorine-based, and silicone-based materials
    ・ The structure is the same as the Clean Series (Grease and packaging are different from the Clean Series)
